séria: Invertor - v prevádzkovom režime UPS, pre dlhú dobu zálohovania

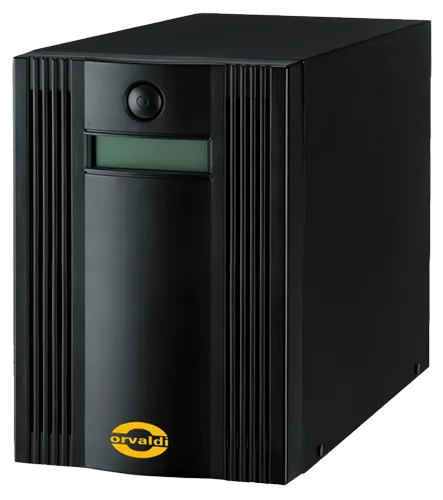

ORVALDI INV12-500W - INV24-1kW
Efficient Power On-Demand. The ORVALDI INV12-500W - INV24-1kW UPS ensures seamless power continuity with pure sine wave output for sensitive electronics.
PRODUCT FEATURES:
- Line-interactive UPS inverter with pure sine wave output.
- Microprocessor control for high reliability.
- Automatic transfer to battery mode during power outage.
- User-selectable 10A or 20A charger.
- Can connect to a 220Ah battery for extended runtime.
- Quiet operation with adjustable fan speed.
- LCD display for status monitoring.
LIST OF APPLICATIONS:
- Household electronics
- Emergency lighting
- Alarm systems
- Telecommunications equipment
- Fiscal devices
- Central heating pumps
- Fireplace pumps
- Gate automation systems
DOWNLOAD:
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
Line-interactive UPS with pure sine wave output, providing stable power during outages.
Voltage Regulation (AVR)
Maintains steady output voltage (230V AC) despite fluctuations in input power.
Battery Management
Efficient microprocessor control optimizes battery charging and performance.
Inverter Function
Converts DC to AC power, enabling usage during power cuts with a clean, smooth output.
Switching Time
Rapid switching time of max 10ms to transition between power sources without interruption.
Output Specifications
Delivers 500W power with a pure sine wave, ideal for sensitive electronic devices.
Display
Basic indicators through an LCD for easy monitoring of device status.
Physical Build
Compact and robust design, easy to install and operate in various environments.
TECHNICKÉ ÚDAJE:
| Model | INV12-0,5kW | INV24-1kW |
| Active power [W]. | 500 | 1000 |
| INPUT | ||
| Permissible mains input voltage [V]. | 220/230/240 VAC | 172-280VAC |
| Permissible frequency [Hz] | 60/50 Hz (automatic adjustment) | |
| Power factor | 1 | |
| OUTPUT | ||
| Output voltage [V]. | 230V AC | |
| AVR mains voltage stabilization | ±10% | - |
| Stabilization of “emergency” voltage | ±4% | |
| Shape of “emergency” voltage | pure sine wave | |
| Typical switching time [ms] | <10ms | |
| Cold start | Yes | |
| Permissible overload | 20% to 30s and 50% to 1s | |
| Output sockets | 1x EU (schuko) | 2x EU (schuko) |
| BATTERY | ||
| DC voltage [V]. | 12 | 24 |
| Maximum charging current (UPS/network) | 8A | 15A |
| DISPLAY | ||
| Display type | LCD | |
| PHYSICAL | ||
| Device dimensions [L x W x H]. | 380 x 115 x 165 | 410 x 145 x 215 |
| Weight [kg]. | 13 | 14,5 |
| Noise level | 40dB, but when the fan turns on it's up to 46dB | |
